 New Hitch Pictures Part 2 and 3 and 4
 New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

ATF

USA
1892 Posts

Posted - 08/16/2010 :  21:47:54  Show Profile  Visit ATF's Homepage Send ATF a Private Message  Reply with Quote

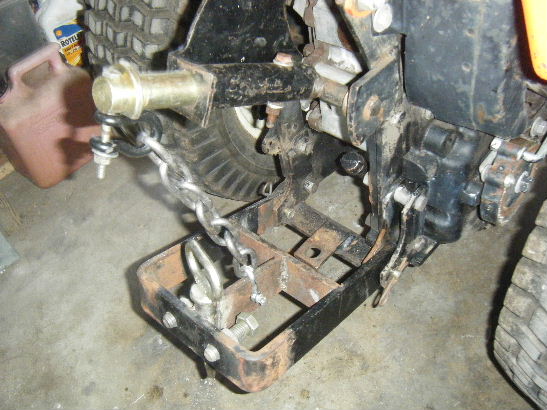

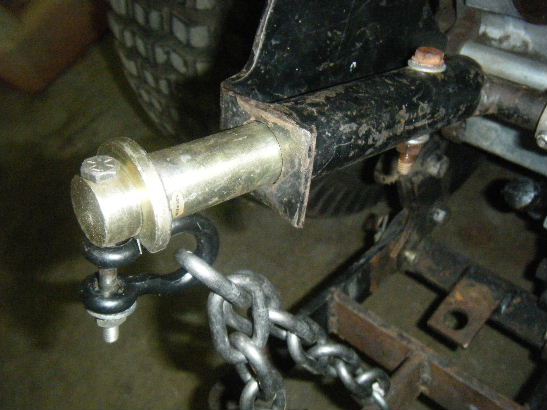

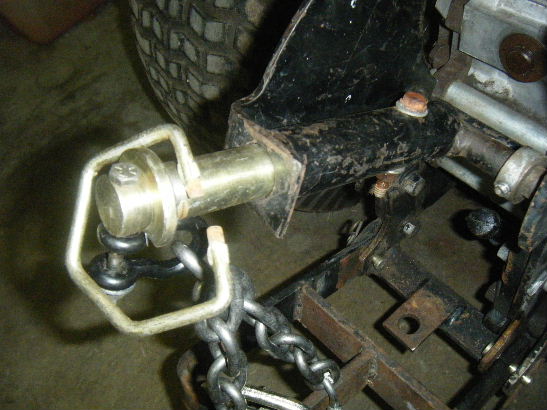

I found a 1 inch pin at the farm supply store, I'm not sure what is was for, but it fit in the top lift bracket like a glove. It also had a 5/16" hole through one end for a pin, I drilled it out to 3/8" and stuck it in the the top hitch hole and put a bolt through, perfect fit. Then I took off the "handle" and put a pin and clevis in it to attach the top chain. I still have to find the exact length for the chain and cut it, also may change the position of the top chain.

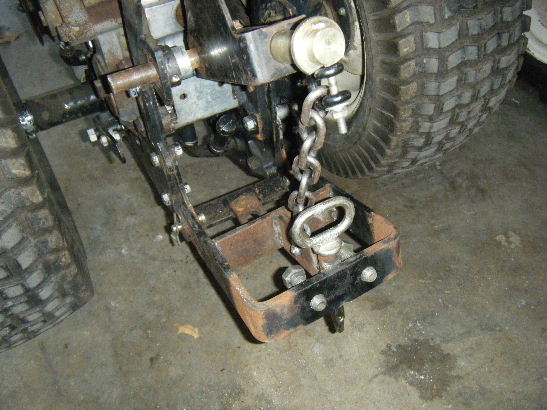

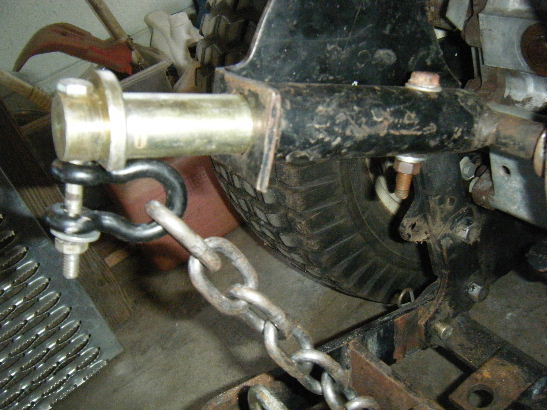

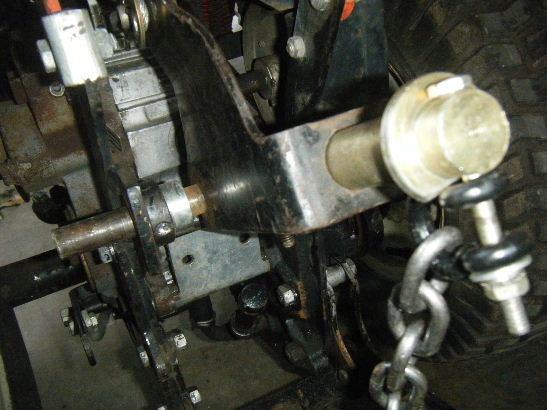

Two more pictures, I really don't know if this set up is good or not, The steel collar stop on the left side, the one with that steps down and rides in the round frame hole, was damaged when I got it off ebay. The set screw was broken off in it. In a butchered attempt to drill it out I broke a hardened titanium drill bit off deep into it. Guess what, cant drill that out. Anyway I just bought another steel collar (shiny part) behind it and tightened it down. I'm going to replace the back bolt with a hook hanger in order to put the chain there, then I can turn the clevis around and hook another chain to pull heavy things.

I'm going to make a round clevis to hook the chain to and move it to the stake and keep the black clevis for adding a pull chain to.













Edited by - ATF on 08/25/2010 21:38:21

7010b1

USA
713 Posts

Posted - 08/23/2010 :  22:13:26  Show Profile Send 7010b1 a Private Message  Reply with Quote
is that brass? good idea is that a home made hitch?

spark up your life with a E3 plug..

,, , ,,,

b1, earlys, big, b12, b110's, 712, 7010, 1316h, homelite T15 and T16, two 410's, over all 20+ of them
Go to Top of Page

ATF

USA
1892 Posts

Posted - 08/24/2010 :  07:51:10  Show Profile  Visit ATF's Homepage Send ATF a Private Message  Reply with Quote
No it's not brass, it s a regular hitch pin from a cat 2 or cat 3 drawbar, I made the hitch from a 10.00 1/4" thick stabilizer bar I found at the farm supply store, it had two large holes on each end , which I cut off, then I used a torch to bend it, found some scrap steel for the cross pieces and used 5/8" axle bushing from a grasshopper as the sleeve hitch pin, along with 5/8" nuts welded to the frame. I made it very close to factory specs for under 20 bucks, 30 if you count the high dollar drill bit I bought.

Go to Top of Page

B10Dave

Canada
1951 Posts

Posted - 08/24/2010 :  22:10:39  Show Profile Send B10Dave a Private Message  Reply with Quote
Mike. Just a suggestion but I think the top attaching point for your lift chain should be straight up from the bottom one. The way it is now looks like it is trying to pull the hitch back at the same time it is lifting and you are losing mechanical advantage. Just my opinion for what it's worth. Great fabricating job. Dave.

Money can't buy you happiness.
It can however buy you a beer.
And that is close enough.

Go to Top of Page

ATF

USA
1892 Posts

Posted - 08/25/2010 :  07:09:11  Show Profile  Visit ATF's Homepage Send ATF a Private Message  Reply with Quote
Thanks Dave, I'm going to exactly that, then leave that end clevis for attaching the pull chain. I'm trying to figure out whether I want to drill a hole through the rod or use a strap around it, I leaning to the latter. Any input is not only helpful, but greatly appreciated. Thanks, Mike

Go to Top of Page

B-16_IC

USA
2823 Posts

Posted - 08/25/2010 :  20:56:05  Show Profile  Visit B-16_IC's Homepage Send B-16_IC a Private Message  Reply with Quote
I had never thought of using a hitch pin, looks easier than cutting rod stock down and drilling holes. Especially since my bandsaw's gearbox went south. Will keep that one in mind.

Life is all about paying. Pay attention, or pay the consequences, the choice is yours. Rich
Go to Top of Page

ATF

USA
1892 Posts

Posted - 08/25/2010 :  21:37:53  Show Profile  Visit ATF's Homepage Send ATF a Private Message  Reply with Quote
quote:
Originally posted by B-16_IC

I had never thought of using a hitch pin, looks easier than cutting rod stock down and drilling holes. Especially since my bandsaw's gearbox went south. Will keep that one in mind.

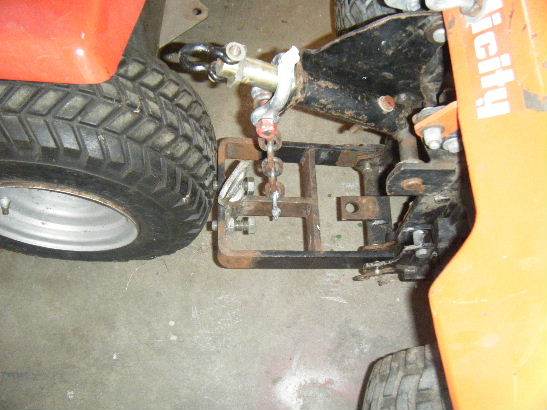

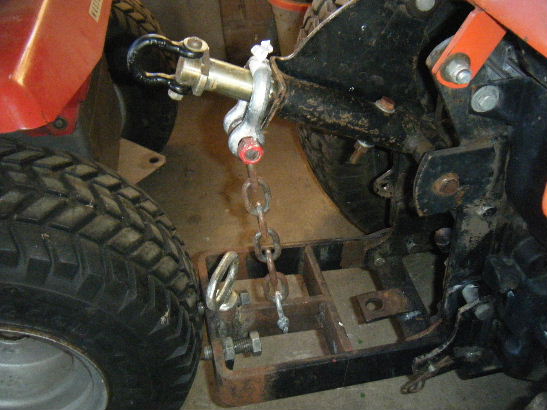

Yeah, especially since the hitch pin came with holes drilled in just the right places, Hey Dave does this set up on the chain lift look better




Go to Top of Page

larry8200

USA
3166 Posts

Posted - 08/25/2010 :  22:05:49  Show Profile  Visit larry8200's Homepage Send larry8200 a Private Message  Reply with Quote
Just about there huh? Hardly wait to see it working.

Go to Top of Page

B10Dave

Canada
1951 Posts

Posted - 08/26/2010 :  21:08:38  Show Profile Send B10Dave a Private Message  Reply with Quote
Mike. The second larger clevis is a very good idea. No drilling, no fuss, no muss. Crack open a beer and pat yourself on the back to celebrate a job well done.

Money can't buy you happiness.
It can however buy you a beer.
And that is close enough.

Go to Top of Page

ATF

USA
1892 Posts

Posted - 08/26/2010 :  23:27:26  Show Profile  Visit ATF's Homepage Send ATF a Private Message  Reply with Quote
Thanks that means a lot, I like clevis's if you haven't noticed. I haven't had a drink in along time, gave it up along with the smokes.

Go to Top of Page

skunkhome

USA
12827 Posts

Posted - 08/27/2010 :  07:46:15  Show Profile Send skunkhome a Private Message  Reply with Quote
I'll take that beer, but only one!

Phil



"They that can give up essential liberty to obtain a little temporary safety deserve neither safety nor liberty."

Benjamin Franklin
Go to Top of Page

B10Dave

Canada
1951 Posts

Posted - 08/27/2010 :  21:48:18  Show Profile Send B10Dave a Private Message  Reply with Quote
Mike. Gave up the smokes in 1982; gave up 75 pounds of excess weight in 2008 ( have kept off 70 for 2 years now) but don't even think of trying to steal my beer. B10Dave

Money can't buy you happiness.
It can however buy you a beer.
And that is close enough.

Go to Top of Page

ATF

USA
1892 Posts

Posted - 08/27/2010 :  22:09:13  Show Profile  Visit ATF's Homepage Send ATF a Private Message  Reply with Quote
Never was a beer drinker, Kentucky straight bourbon straight, no ice, no mixer, no glass. When I quit was close to half a gallon a day

Go to Top of Page

larry8200

USA
3166 Posts

Posted - 08/27/2010 :  22:18:12  Show Profile  Visit larry8200's Homepage Send larry8200 a Private Message  Reply with Quote
quote:
Originally posted by ATF

Never was a beer drinker, Kentucky straight bourbon straight, no ice, no mixer, no glass. When I quit was close to half a gallon a day



And to think I get on my own case for a couple of shots and a beer. The smokes have got to go though...

Go to Top of Page

skunkhome

USA
12827 Posts

Posted - 08/27/2010 :  23:04:20  Show Profile Send skunkhome a Private Message  Reply with Quote
quote:
Originally posted by ATF

Never was a beer drinker, Kentucky straight bourbon straight, no ice, no mixer, no glass. When I quit was close to half a gallon a day

Mike you are a scream. That would pretty much pickle you.

Phil



"They that can give up essential liberty to obtain a little temporary safety deserve neither safety nor liberty."

Benjamin Franklin
Go to Top of Page

ATF

USA
1892 Posts

Posted - 08/28/2010 :  14:12:11  Show Profile  Visit ATF's Homepage Send ATF a Private Message  Reply with Quote
quote:
Originally posted by skunkhome

quote:
Originally posted by ATF

Never was a beer drinker, Kentucky straight bourbon straight, no ice, no mixer, no glass. When I quit was close to half a gallon a day

Mike you are a scream. That would pretty much pickle you.


20 years of it did pickle me, lucky to be alive.
