 allis 300/400 snowthrower?		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

a7117puller

43 Posts
Posted - 08/28/2013 :  21:54:36  Show Profile  Visit a7117puller's Homepage Send a7117puller a Private Message  Reply with Quote
Recently got an allis 42" snowthrower in trade and where the mounting bracket like on the simplicity equilivents are, there are tabs, and the color is cream. Would this be a 300/400 series snowthrower? I can't find pics to confirm this so this must be a hard to find item?

Tclark

USA
205 Posts
Posted - 08/28/2013 :  22:18:57  Show Profile  Visit Tclark's Homepage Send Tclark a Private Message  Reply with Quote
we will need pics to know for sure i cant quite picture what you have by your description. IMO pics would help.
Go to Top of Page

sammiefish

USA
649 Posts
Posted - 08/29/2013 :  08:02:33  Show Profile  Visit sammiefish's Homepage Send sammiefish a Private Message  Reply with Quote

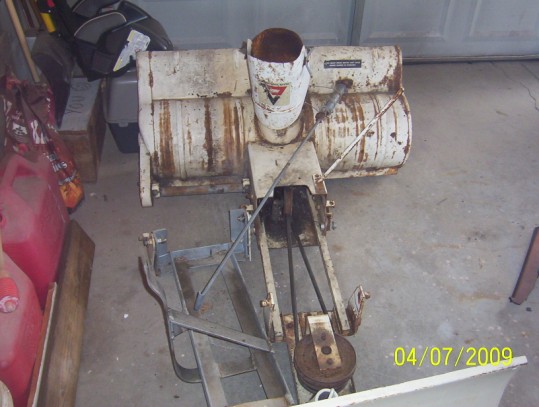

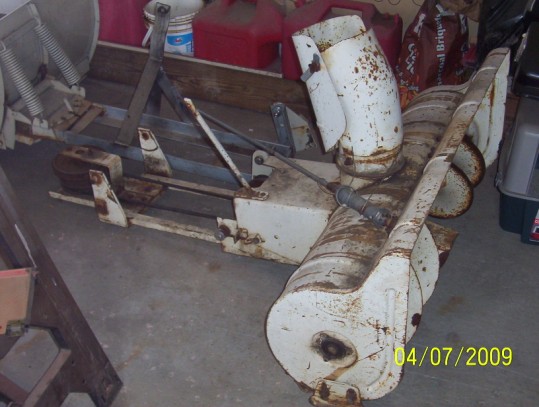

here are pictures of a 300 series snowblower...





the 300 blower will fit both the 3 and 400 tractors... the 400 blowers are more like any allis simplicity blower

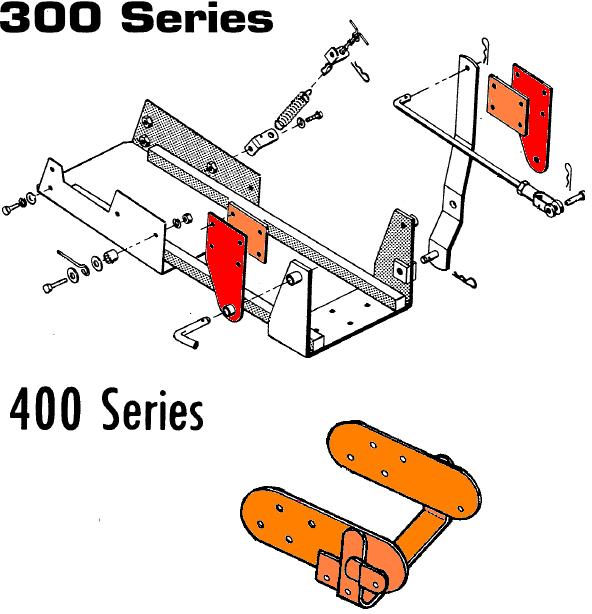

here are the 3 & 400 series blower hitches only:
Chris 3/4's : )
Edited by - sammiefish on 08/29/2013 08:06:19
Go to Top of Page

a7117puller

43 Posts
Posted - 08/29/2013 :  17:23:14  Show Profile  Visit a7117puller's Homepage Send a7117puller a Private Message  Reply with Quote
Thank you sammiefish for confirming this. Yup that is the right housing with the tabs going outward by the hitch mount. Another question is, does this shield go on the rear hitch to cover the idler pulleys?
Edited by - a7117puller on 08/29/2013 17:25:46
Go to Top of Page

sammiefish

USA
649 Posts
Posted - 08/29/2013 :  20:05:46  Show Profile  Visit sammiefish's Homepage Send sammiefish a Private Message  Reply with Quote
that is a cover mostly lost over the years...
I have a few but I never install them...
it covers the driven pulley at the end of the 300 hitch...
the bevels go toward the blower. there is a big plastic molded
wingnut (with a steel nut in the casting) that holds it in place.
I always thought there was only one big nut... the other hole just
kept the housing aligned
Chris 3/4's : )
Edited by - sammiefish on 08/29/2013 20:06:21
