 Posted - 04/20/2011 : 22:34:13
|

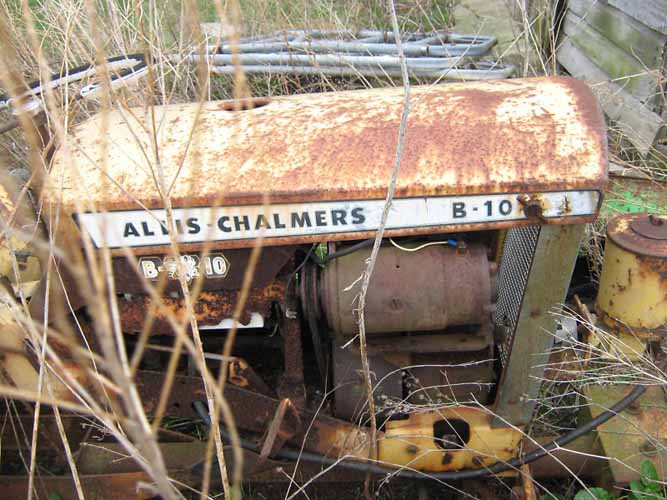

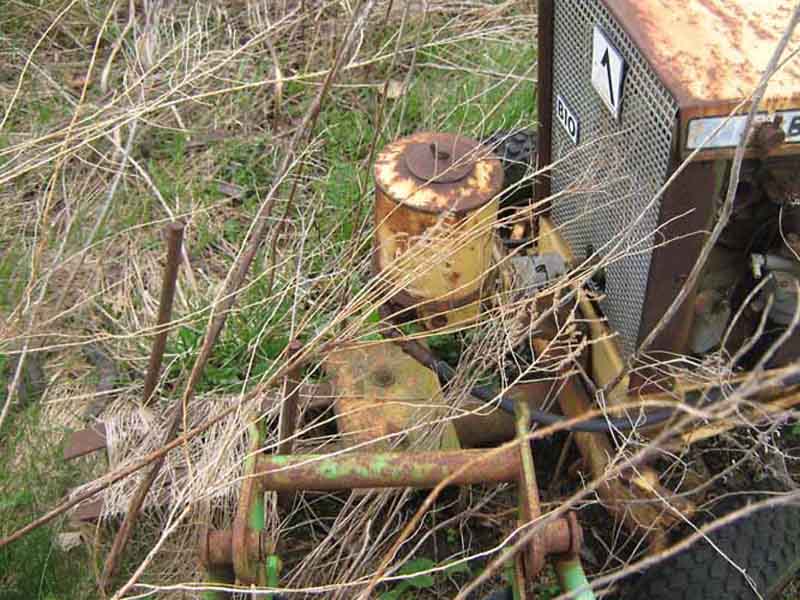

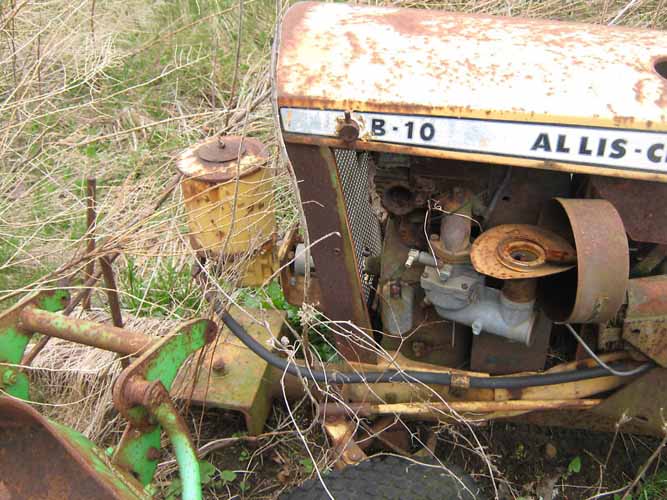

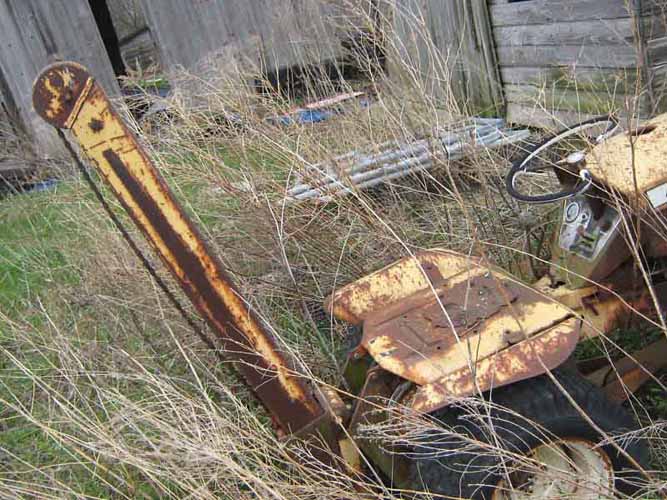

Wow! You just never know what might be behind the barn buried in tall weeds! |
Wes
2 1964 Allis Chalmers B-10's
|
 |
|
|
B112
USA
5230 Posts |
Posted - 04/20/2011 : 23:02:45
|
Nice spotting Mack  Hope someone gets it, restores it and posts pictures! I'd like dimensions and ideas... Never try to do it exact, but it's been engineered. |
Michael |
|
|
|
Talntedmrgreen
USA
4110 Posts |
Posted - 04/21/2011 : 06:18:10
|
Wow is right...that's the first I've ever seen listed. I am heading that way this weekend to grab a cultivator... =]
What a shame to see something so rare hanging out and weathering away. It is cool to get a close up look at one though. I had no idea the controlls replaced the lift, etc. |
    |
|
|
|
ASEguy
319 Posts |
Posted - 04/21/2011 : 07:49:40
|
| I'm curious about how much it goes for Mack. Can you post back? |
Gerard
1967 Allis B-110
1948 Allis model C
1949 Ford 8N (gift)
Gravely model L walk behind (gift) |
|
|
|
Talntedmrgreen
USA
4110 Posts |
Posted - 04/21/2011 : 08:08:44
|
| It's at $685 right now...it's gonna go really high. I remember that B with rusted through loader that mark had sell a couple months back...what did that go for, mid to high $2K? I wonder how this will compare...I think the tractor is negligible =] |
|
|
|
|
cschmidt62
USA
560 Posts |
Posted - 04/21/2011 : 18:39:40
|
| I don't think the owner even knows what he has, did you notice it does not say anything about a forklift! |
Artificial Intelligence is no match for Natural Stupidity |
|
|
|
Talntedmrgreen
USA
4110 Posts |
Posted - 04/21/2011 : 20:16:39
|
| One heck of a parts tractor for sure...I'm sure they're thrilled. Previous auctions show antique toys, etc. |
|
|
|
|
B112
USA
5230 Posts |
Posted - 04/21/2011 : 21:09:32
|
| I tried to get sympathy for buying that. It didn't work! I really have no money for it! 500 miles, I'd figure a way of driving that home. I am still saying to myself it is really only a collectors item, I could use a Heavy Duty Forklift which could lift my boat engine in/out of my boat. |
Michael |
|
|
|
sammiefish
USA
649 Posts |
Posted - 04/21/2011 : 21:12:09
|
well, impressive...
the owner knows exactly what he has...

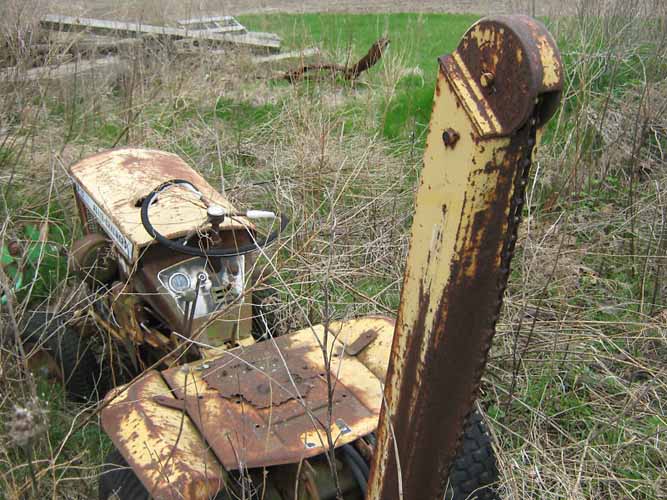

"chain like a chainsaw" ??
not how Id describe it if I knew any thing about anything...
my boloney has a second name..... "its BOLOGNA"
still a nice piece!! |
Chris 3/4's : ) |
Edited by - sammiefish on 04/21/2011 21:17:01 |
|
|
|
B112
USA
5230 Posts |
Posted - 04/21/2011 : 21:37:26
|

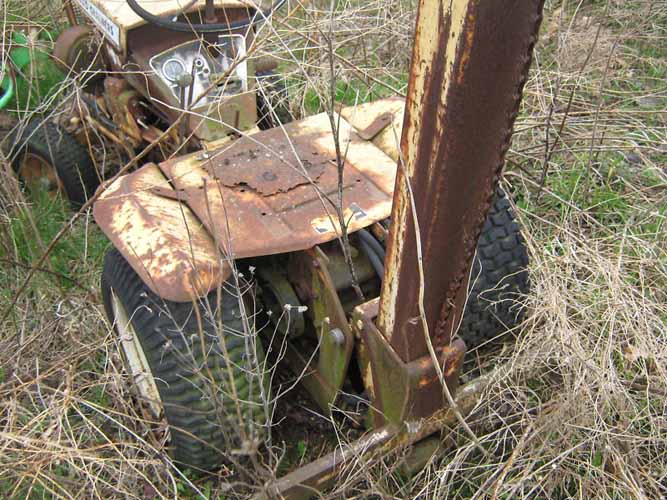

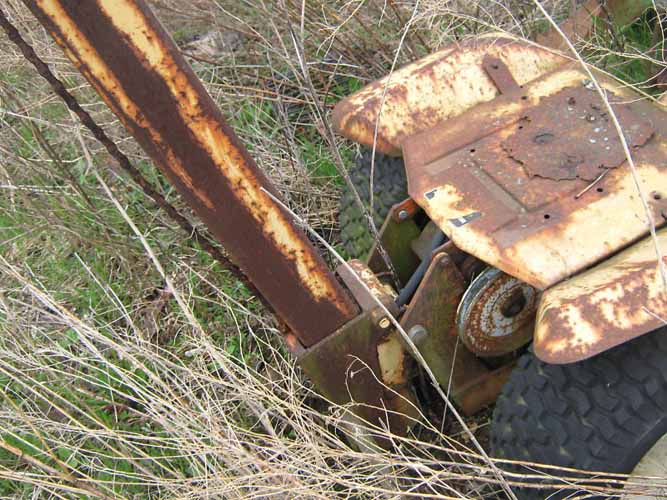

I'm still looking that over to figure out how the forks looked. The unit tilts with a hydraulic piston, the forks lift using the chain and a piston in that tube (some way). Would be handy.
Note: As I look at this we could make one. So where's the reservoir.
This link explains how a forklift works.
http://www.ehow.com/how-does_5398671_forklift-works.html
|
Michael |
|
|
|
Mack
USA
204 Posts |

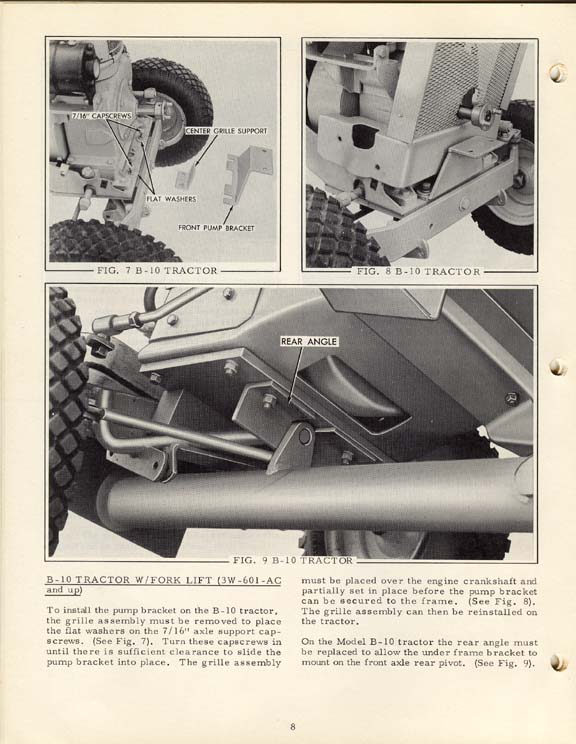

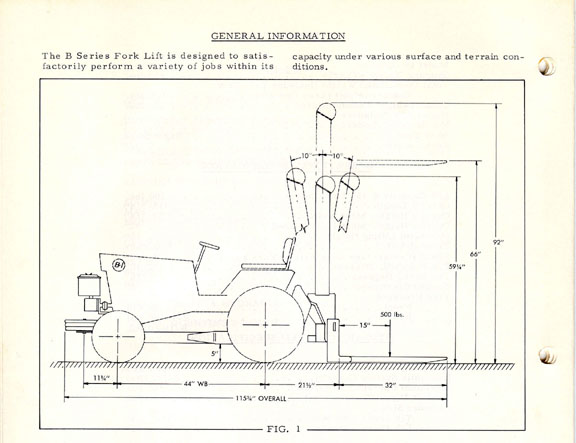

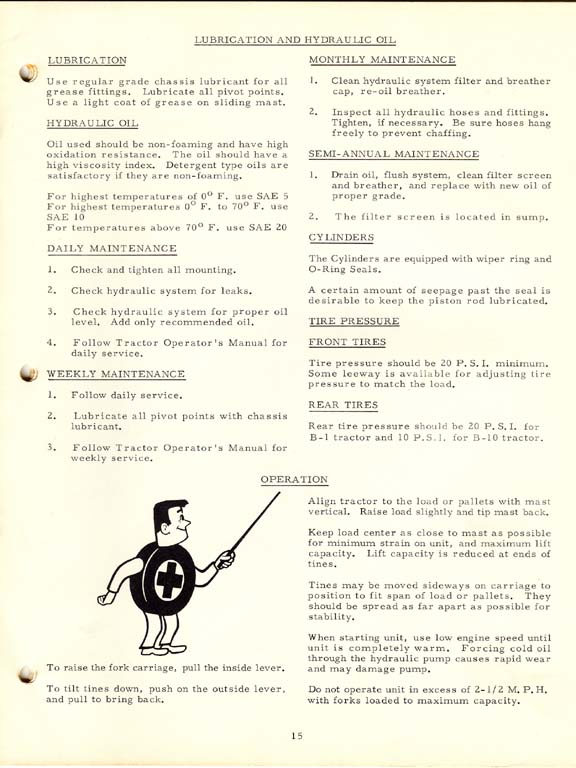

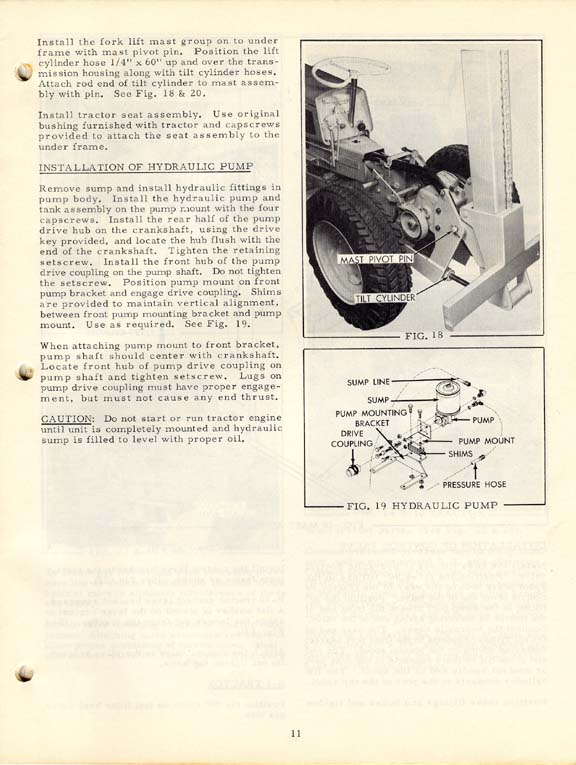

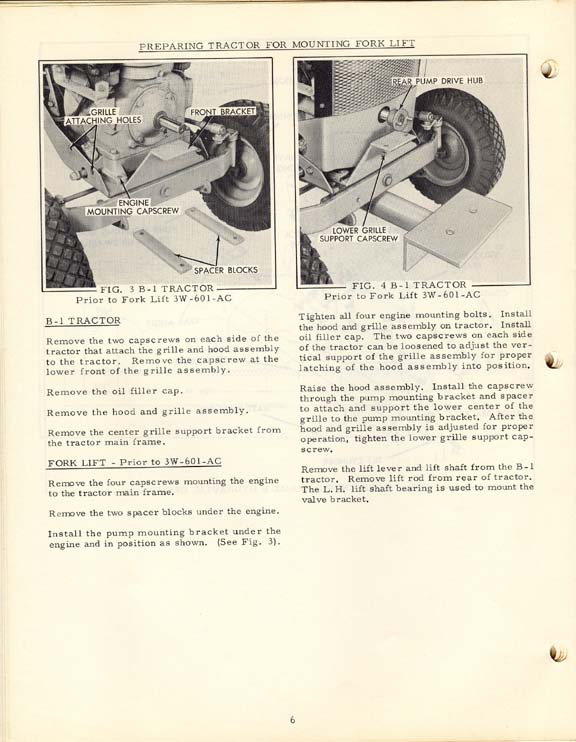

Posted - 04/21/2011 : 22:15:44
|
|

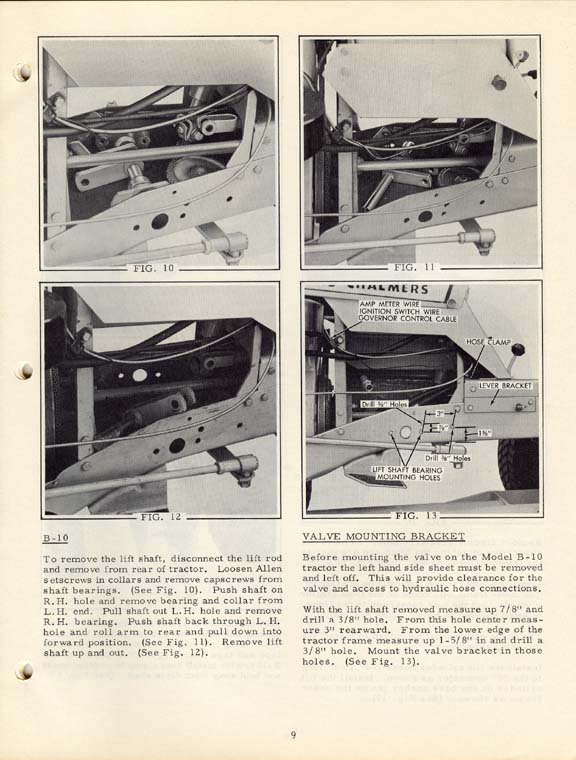

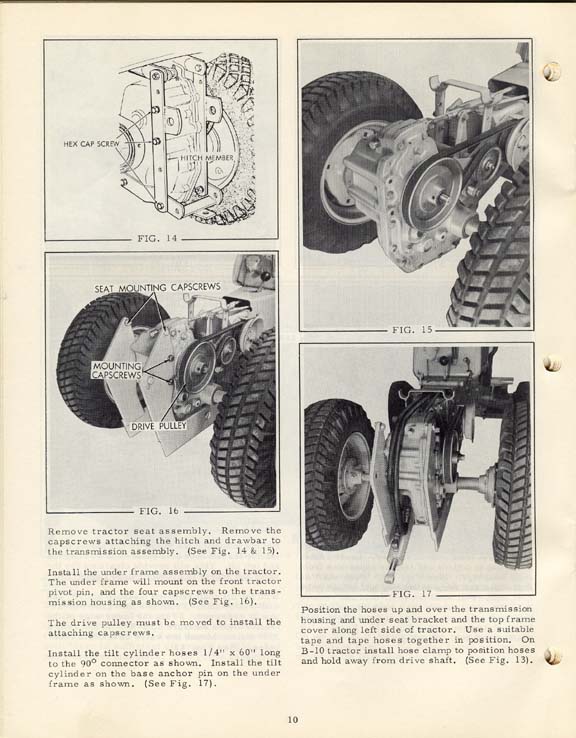

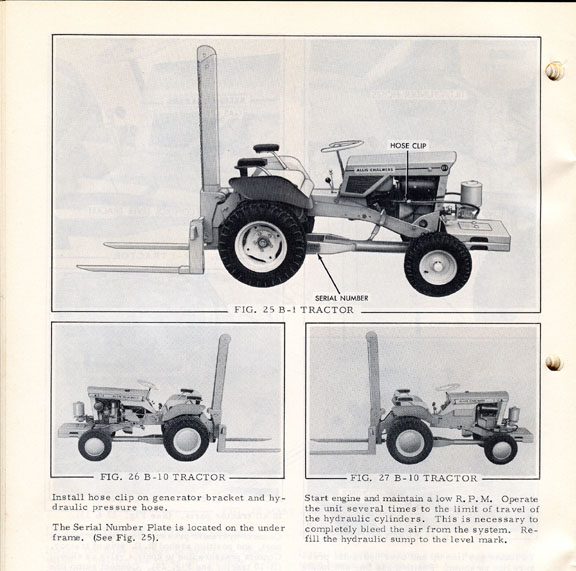

Mack |
Edited by - Mack on 04/22/2011 07:33:33 |
|
|
|
B112
USA
5230 Posts |
Posted - 04/21/2011 : 22:55:06
|

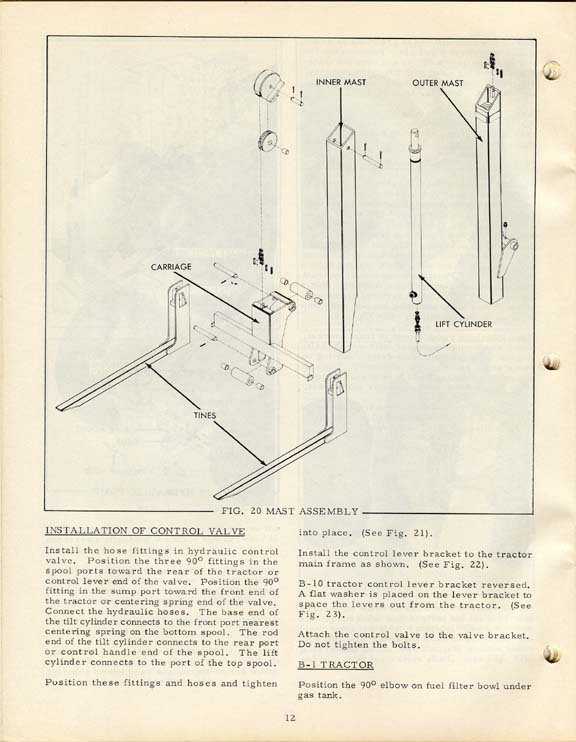

| Mack, thanks! The inner tube looks like it must have a slot for that pin towards the top. I am assuming those are two square tubes, one inside the other. Probably greased with a roller in the top on that pin. The slot doesn't need to be the length of the inner tube and inside that it must have the piston. You only need the travel to go half the distance to lift the 5.5' of travel. So the piston must have a range of around 2.75' or 33". I guess the reserve fluid is in that pump. Dimensions would be nice :) |
Michael |
|
|
|
Talntedmrgreen
USA
4110 Posts |
Posted - 04/22/2011 : 06:04:49
|
| I think the front counterweights are missing in the auction pics...I bet thery're not far away. I talked to the gal selling it, and it was part of her late husband's collection. Probably more goodies around that place, Mack! |
|
|
|
|
skunkhome
USA
12827 Posts |
Posted - 04/22/2011 : 08:40:40
|
| That is interesting to see that it has a 500# capacity 15" from the mast. I wonder how the axle tube holds up under those loads. It is definitely a single use tractor once the forklift is attached. |
  Phil
"They that can give up essential liberty to obtain a little temporary safety deserve neither safety nor liberty."
Benjamin Franklin |
|
|
|
B112
USA
5230 Posts |
Posted - 04/22/2011 : 19:57:50
|

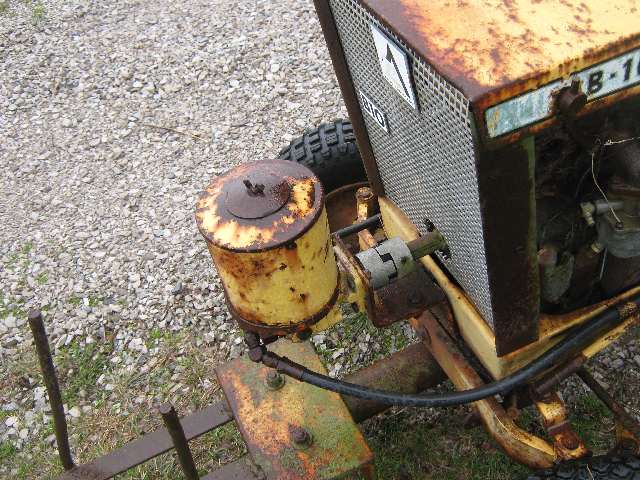

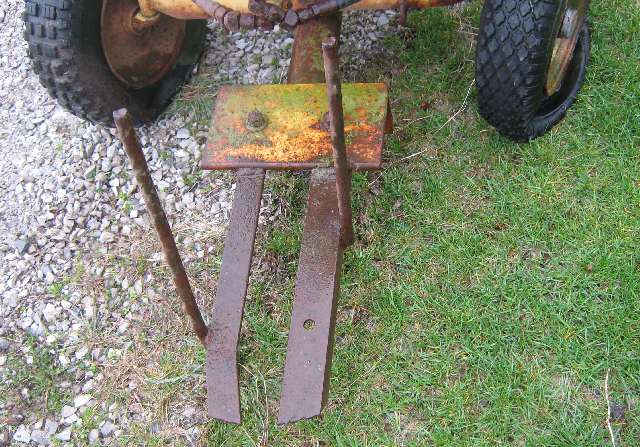

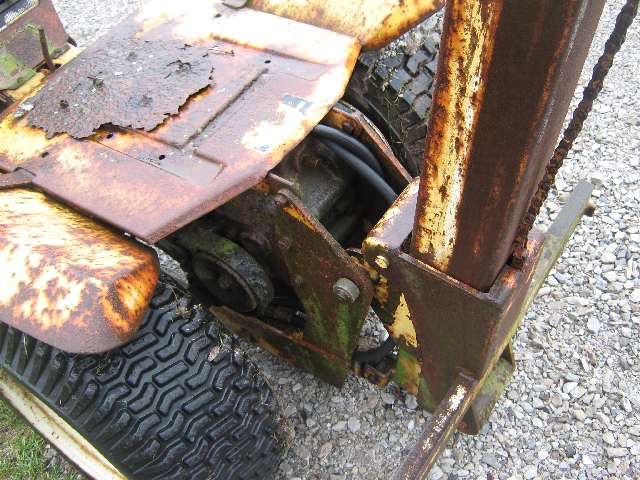

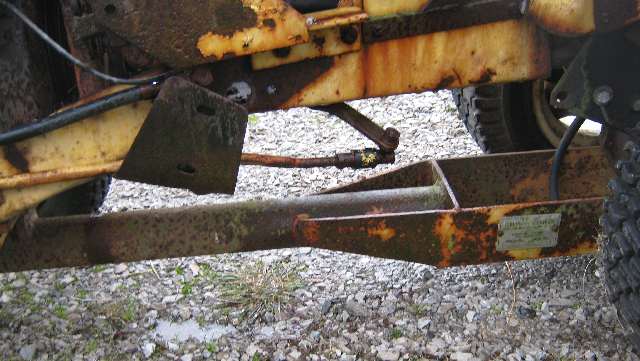

Here are some more photos. I asked for a few more. Good luck anyone bidding. If you get this, please post dimensions

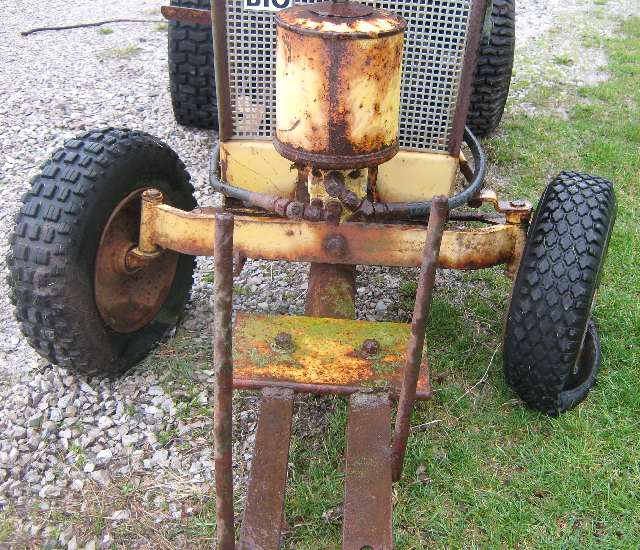

Note: The front looks modified to stack gym weights and the rear tines (forks) are not on there. I asked about those. I asked for more pictures of the rear section. |
Michael |
|
|
|
